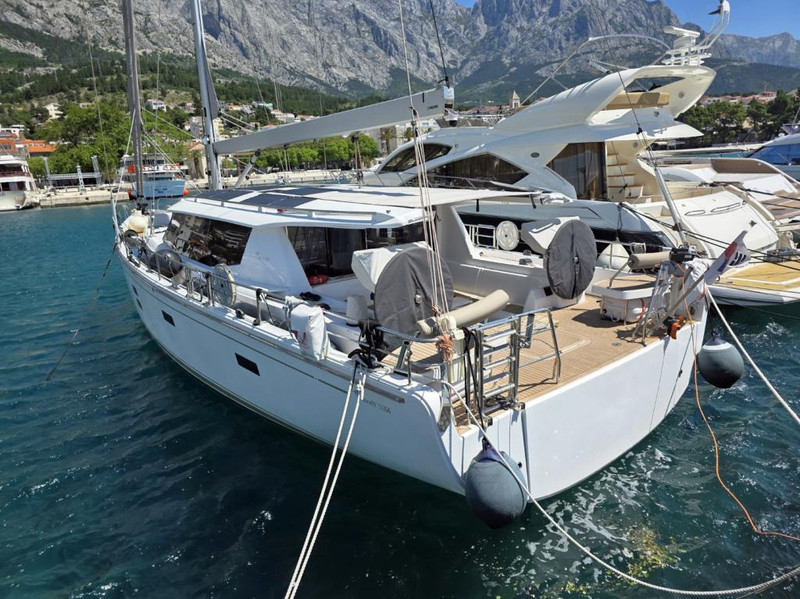

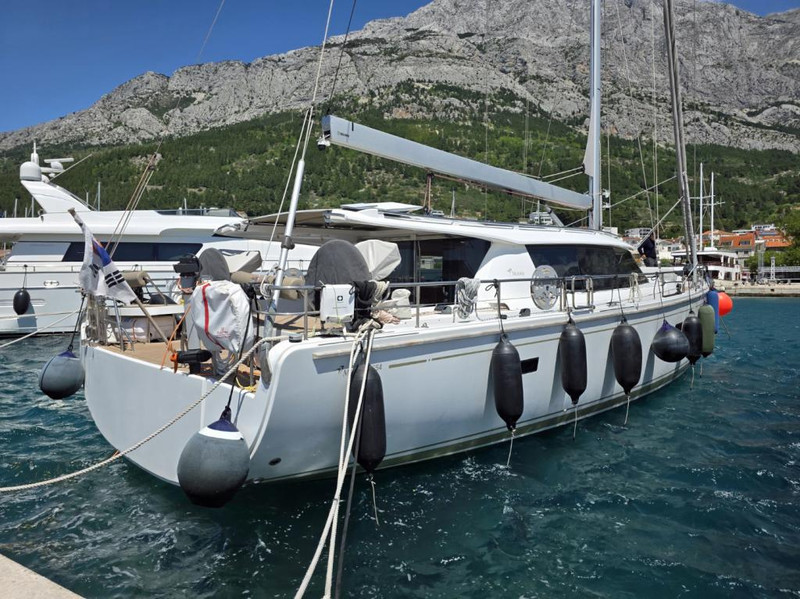

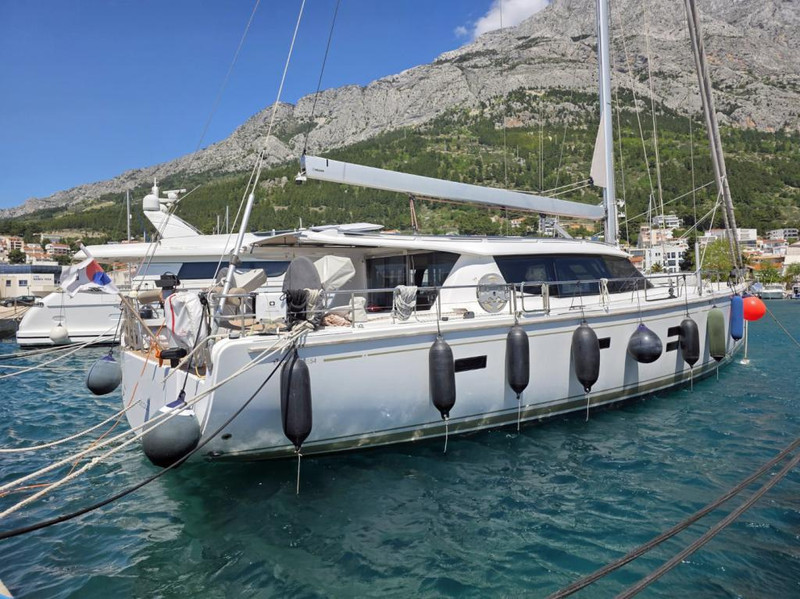

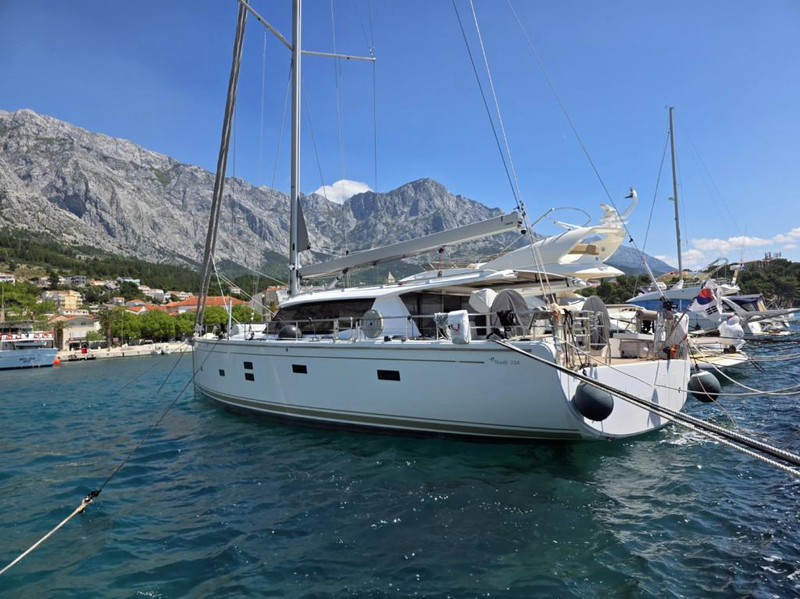

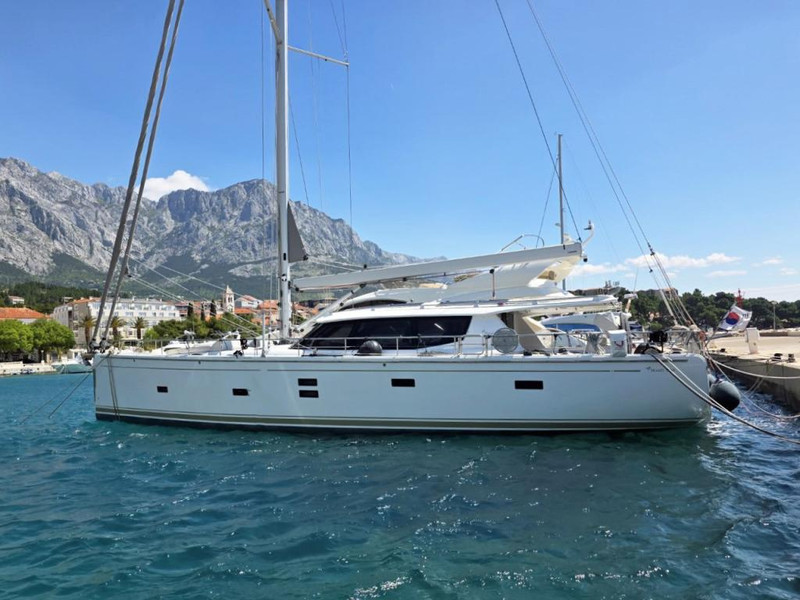

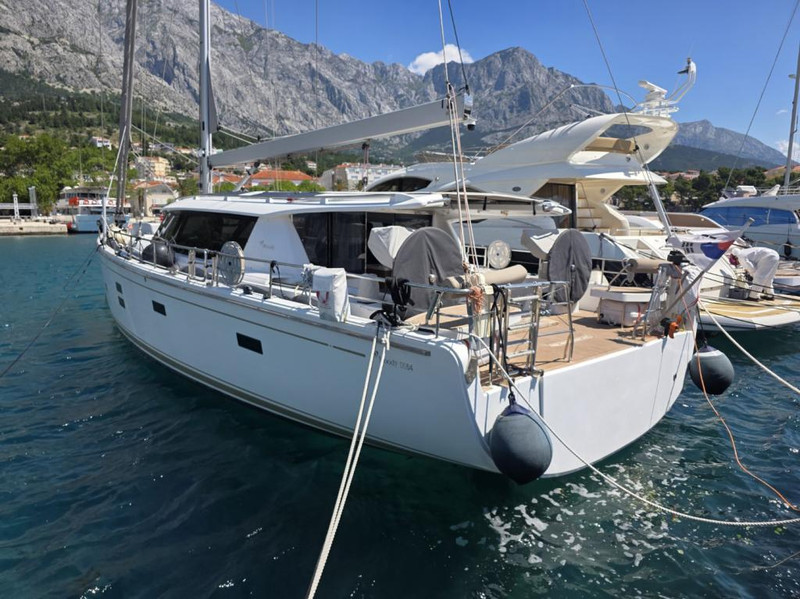

Sailing Yacht Moody DS 54 2023

Moody DS54 (Decksaloon) from 2023 for sale!

Experience the deck saloon feeling at its most impressive size. The Moody DS54 boasts the sense of space and comfort that usually comes with a 60-foot sailing yacht. While its design sets new standards, it remains faithful to the legendary Moody qualities: hand-crafted luxury, effortless handling and exemplary suitability for all weather conditions. The Moody DS54. A bluewater yacht for all seasons. For all seas.

Registered under San Marino flag, VAT not paid.

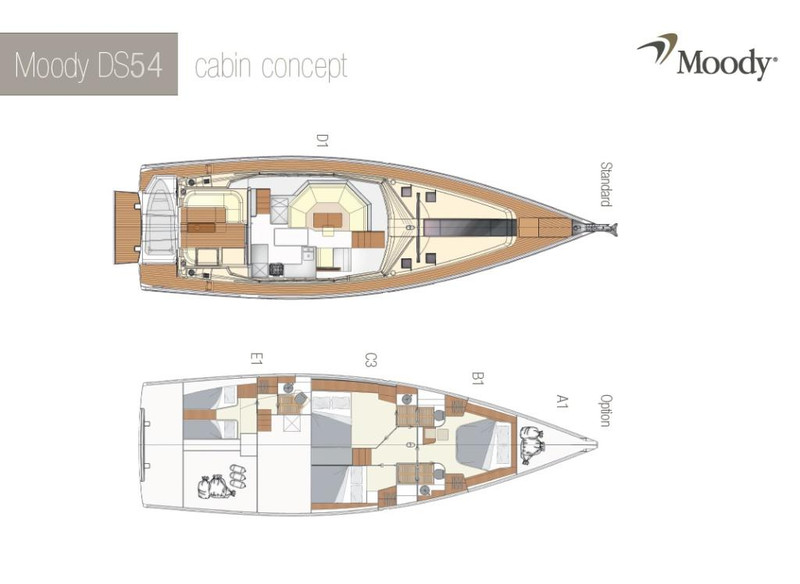

Layout:
4 cabins, 8+2 berths, 3 heads.

Fully equipped for blue water cruising!

Powered by Yanmar diesel engine with 146 HP power.

Additional photos available on request.

Contact us for more details or to arrange a visit to the yacht.

Yacht specifications:

General
*Builder: Moody/HanseYachts AG (Germany)
*Designer: Dixon Yacht Design
*Flag of Registry: San Marino (non-EU)
*Hull number last digits: DE-MOO54xxxxx24
*CE Certificate: A - 12
*Hull Type: Fin w/bulb & spade rudder
*Rigging Type: Fractional Sloop
*12 hull windows (6 each side)

Materials
*Hull material: GRP (Glass Reinforced Plastic), isophthalic gelcoat, colour Off White
*Keel: L-keel
*Ballast Type: Cast iron
*Rudder: GRP rudder with sea-water resistant aluminium shaft and selfaligning bearings
Deck: Flexiteek deck, gelcoat colour: Off White

Dimensions
Length in registration documents:
*Length overall (LOA) (m.): 17,17 m
*Length on waterline (LWL): 15,55 m
*Beam: 5,19 m
*Depth: 2,34 m (shallow keel)
*Mast length above waterline: 24.80 m
*Displacement: 24,700 kg
*Ballast: 6,380 kg

Engine
*Number of engines: 1

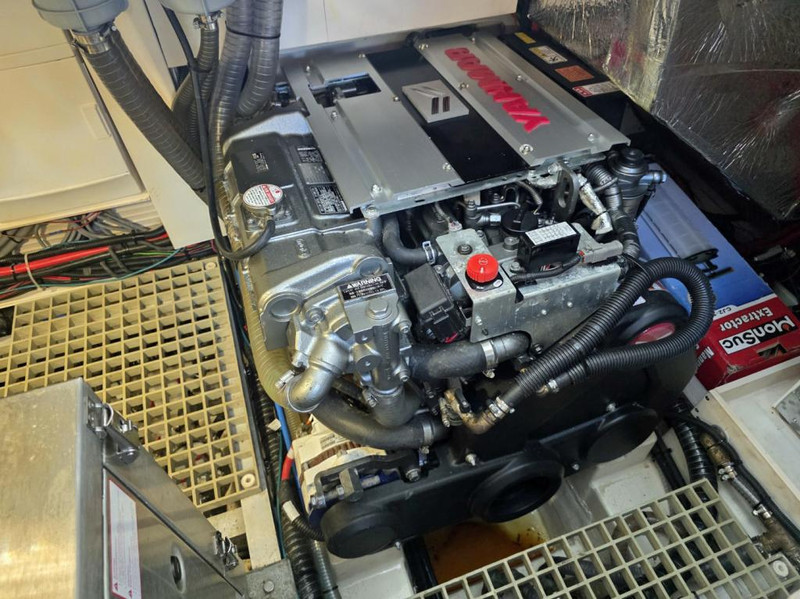

*Model: Yanmar 4LV150 (diesel with shaft drive)
*Power: 107 kW / 146 HP
*Working hours: -
*Propeller: 4 bladed, foldable
*3 Electronic throttle controls (double in cockpit on both sides and one on navigation desk)

Tankage
*Fuel tank capacity (l): 782 (522 + 260)
*Fresh water tank capacity (l): 920
*Blackwater system (appr. 85 l per head) with deck extraction and seacock

Accommodation
4 cabins, 8+2 berths, 3 heads
*Interior furniture in high quality marine plywood, satin varnished

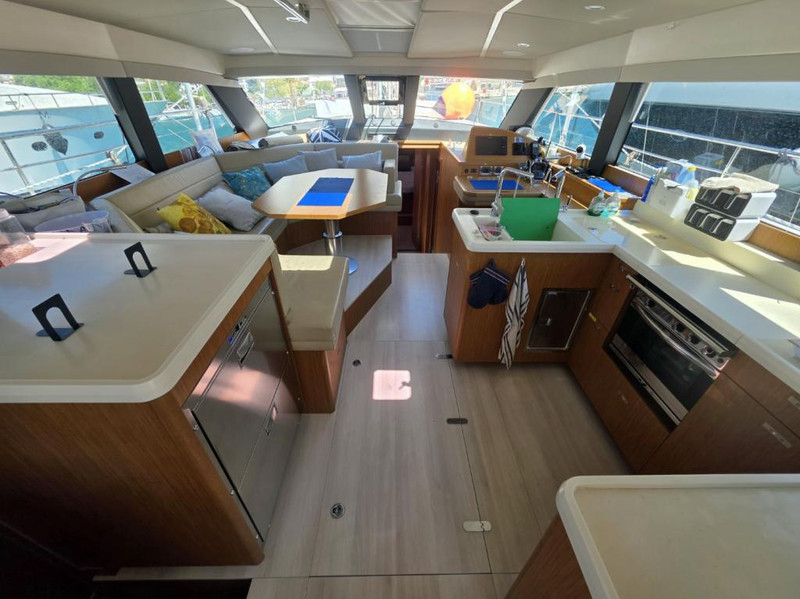

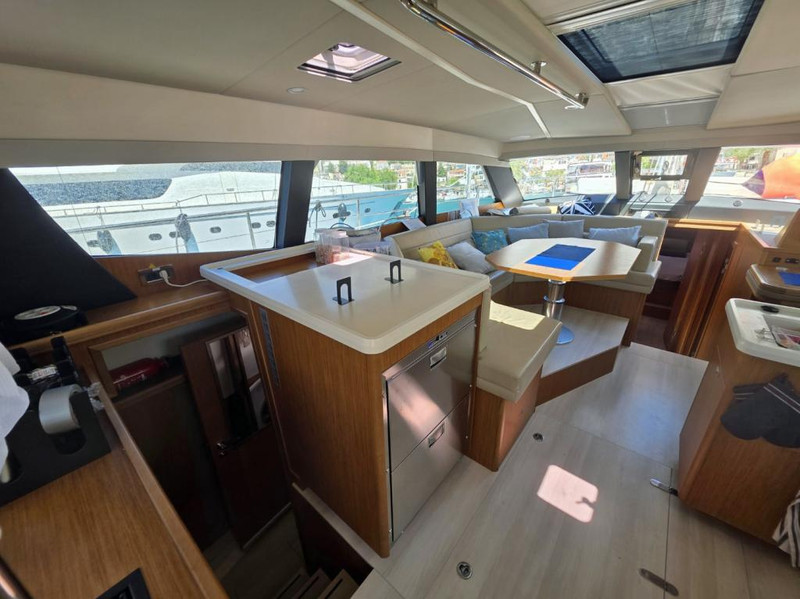

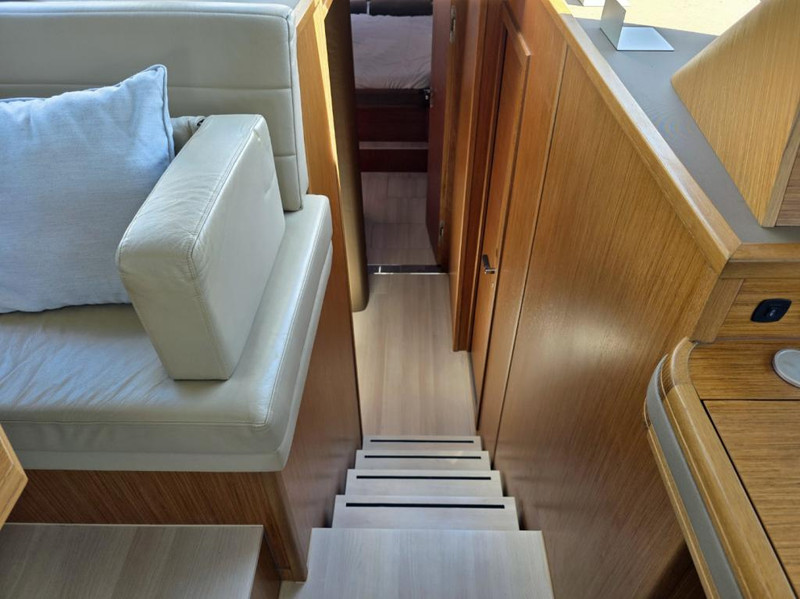

Deck saloon:
*U-shaped saloon settee with saloon table with electric high/low leg that can be converted to 2 extra berths (leather upholstery) on portside

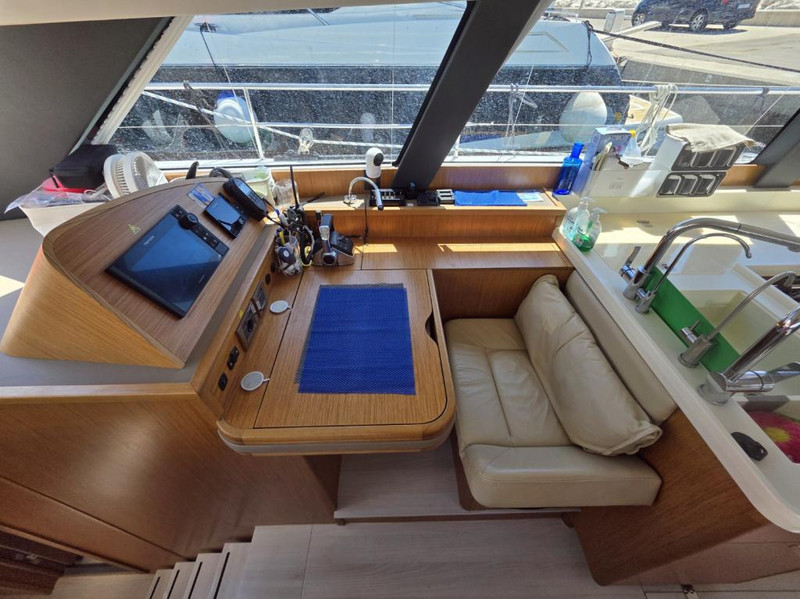

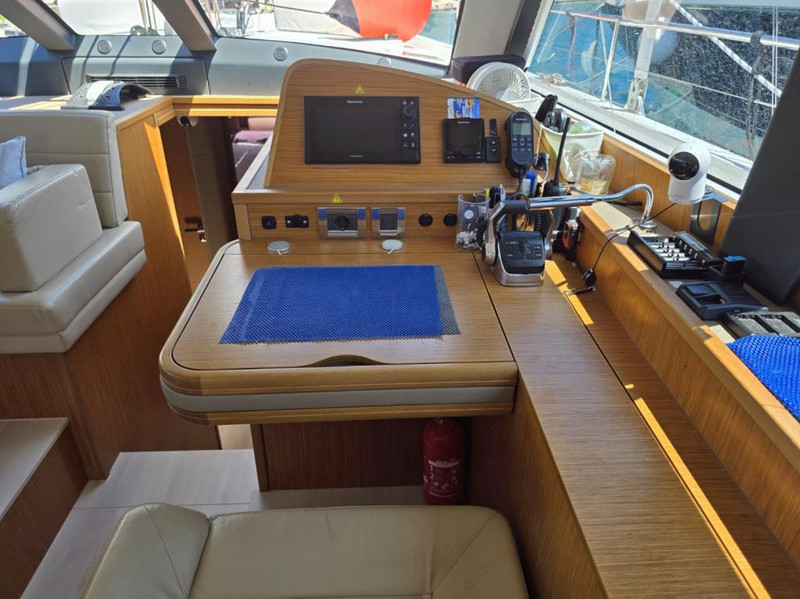

*Navigation desk with seat (leather upholstery) on starboard side

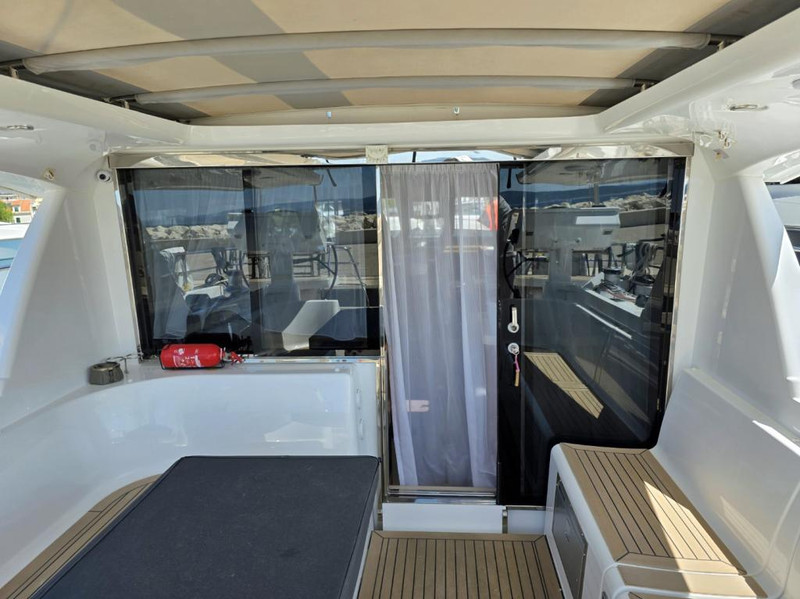

*Sliding door in deck house with curtains

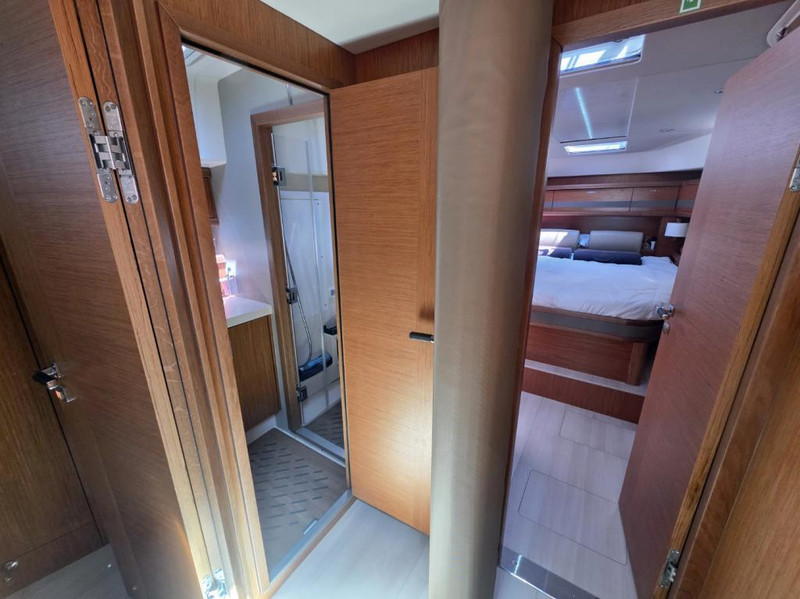

Master cabin with ensuite head in bow:

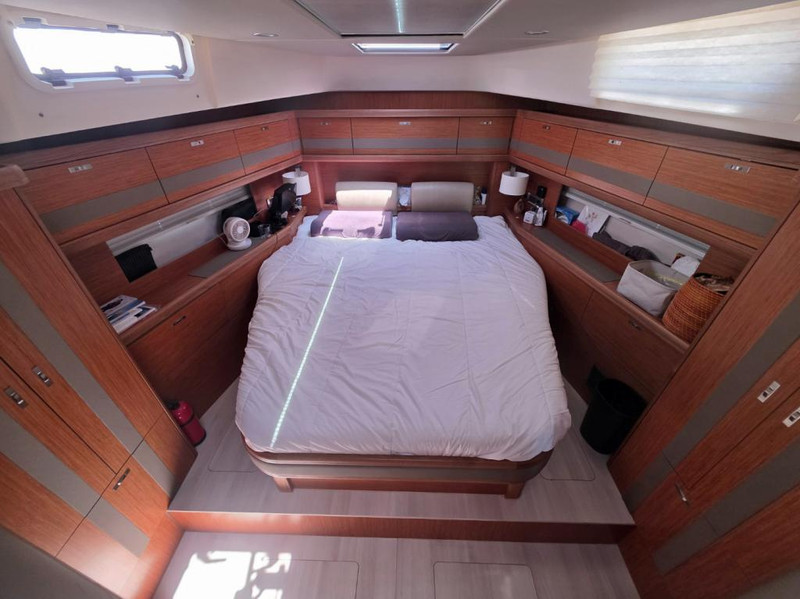

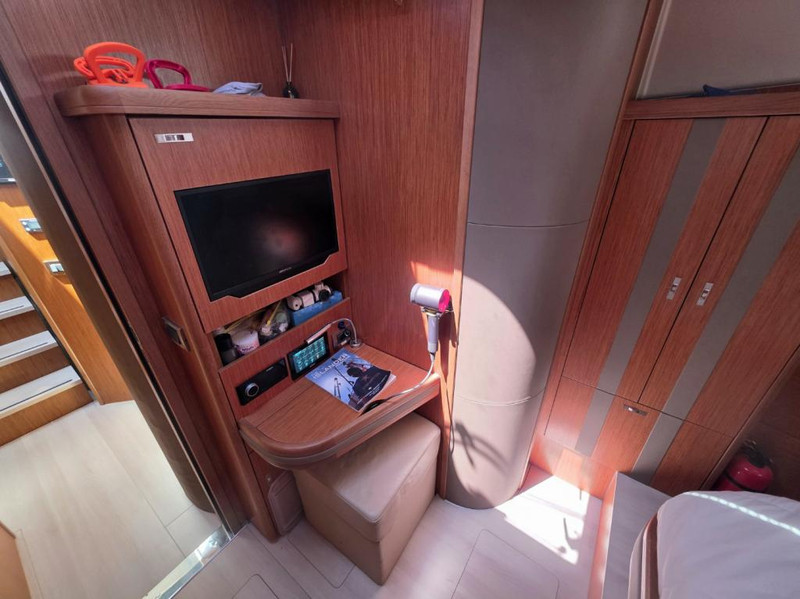

*Master cabin with large island double bed, hanging lockers, vanity table with tabouret

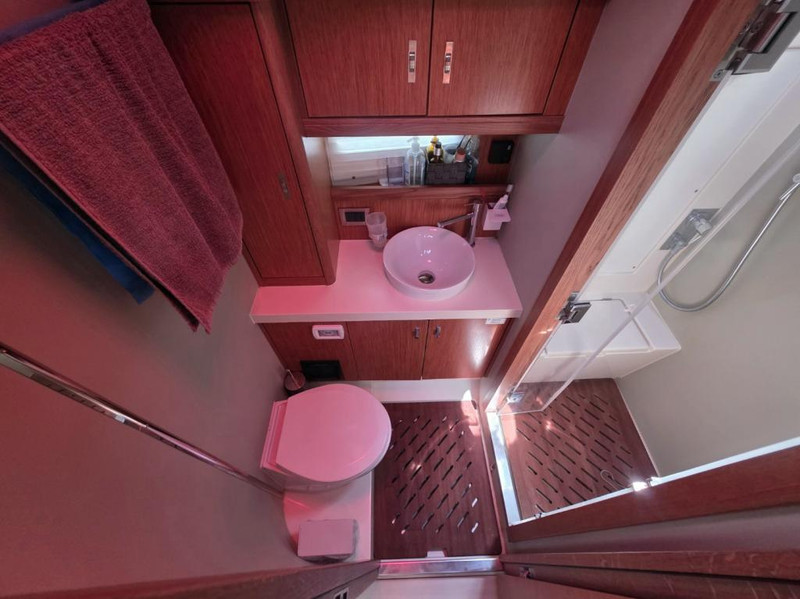

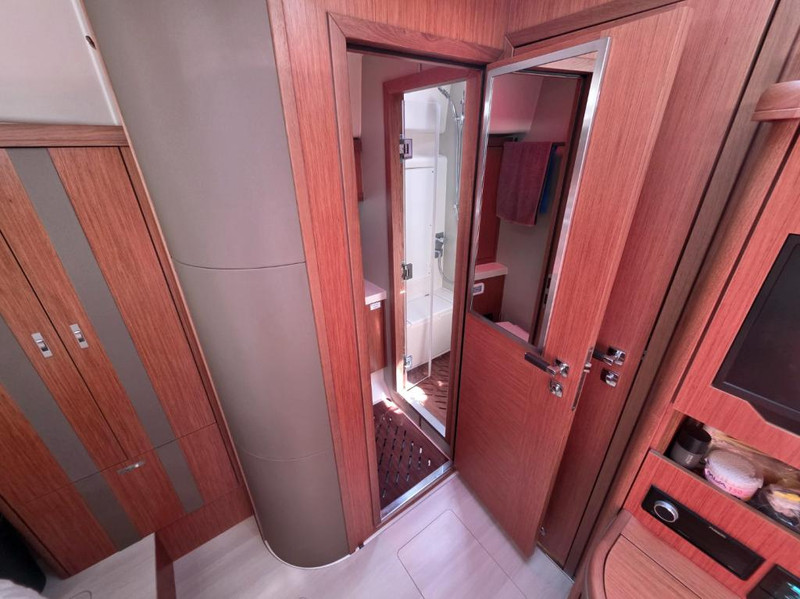

*Ensuite head with electric toilet, washbasin and separated shower stall, mirror on door
Portside VIP guest cabin:
*Guest VIP cabin in midship with long 'Queen size' double bed, hanging lockers

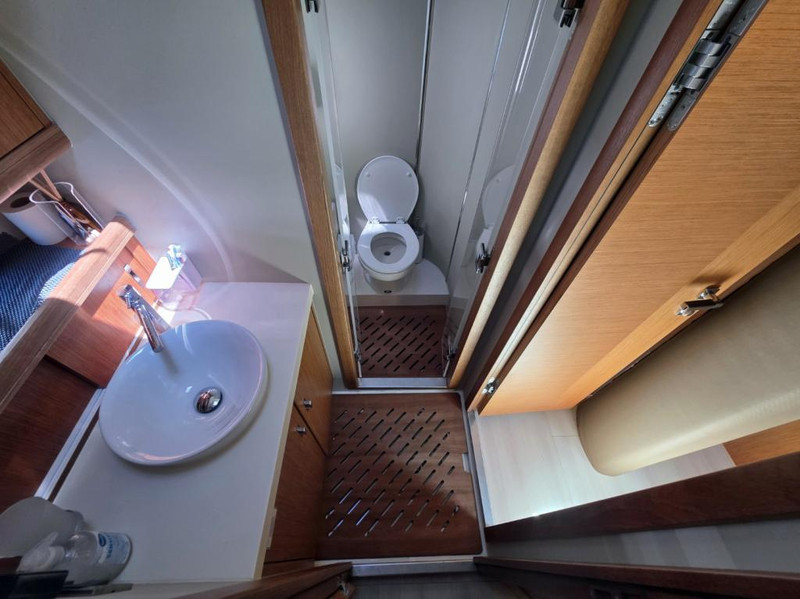

*Access door straight from cabin to portside head with electric toilet, washbasin and separated shower room (toilet inside shower room), mirror on door
Starboard guest cabin:

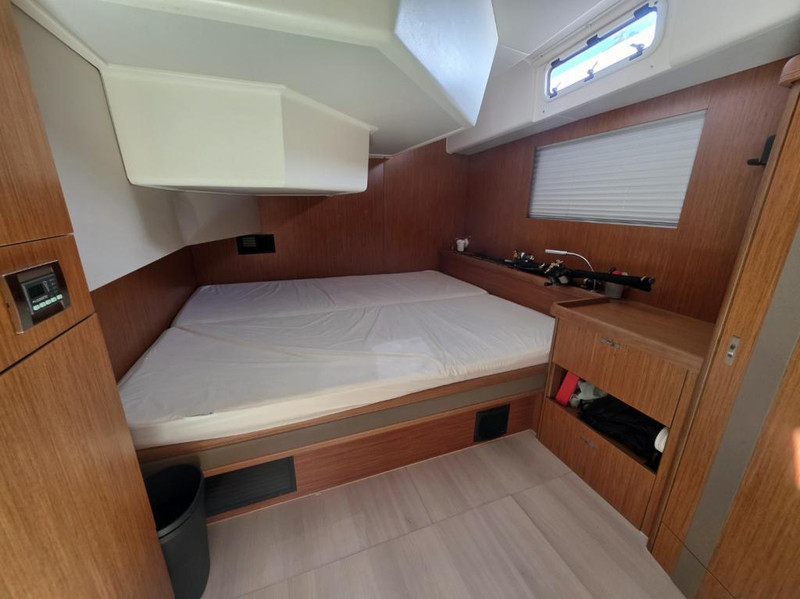

*Starboard guest cabin in midship with double bed, hanging lockers
Portside aftcabin and aft dayhead:
*Aftcabin with 2 single beds, hanging lockers

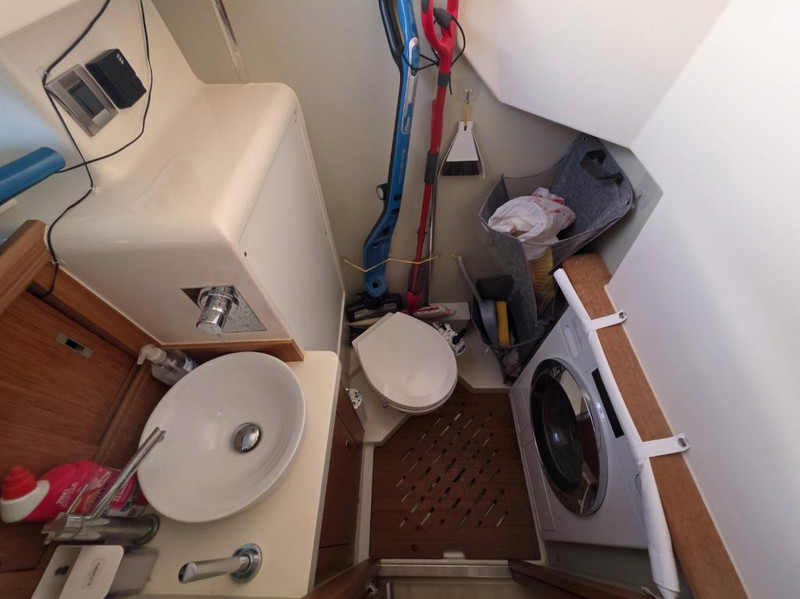

*Aft head with Jabsco manual toilet, washbasin, shower and washing machine with dryer function, front opening
Sail locker in bow:
*Sail locker with extensive storage space and with entrance ladders and shelves

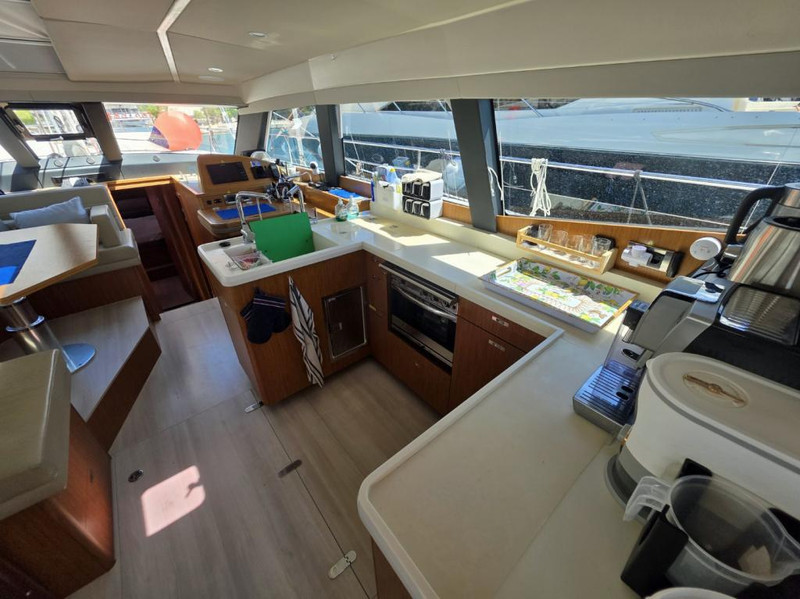

Galley

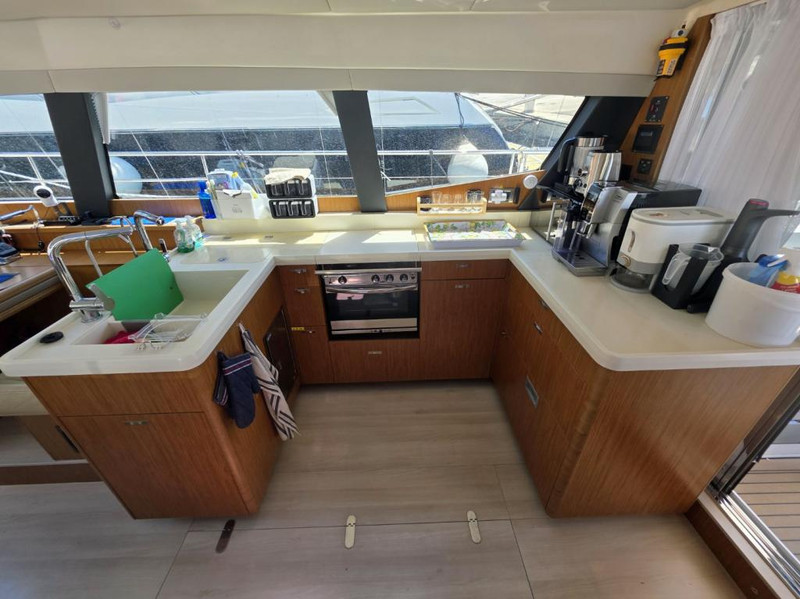

U-shaped galley
*Stove with 3 gas burners and oven Eno
*Refrigerator Isotherm, top and front loading
*Stainless-steel double-drawer fridge-freezer Vitrifrigo including icemaker
*Dishwasher
*2 Sinks with mixing tab
*Lots of storage space

Electronics
*Radar Raymarine Quantum 2
*3 GPS Chartplotters Raymarine Hybridtouch (2x Axoim 12? in cockpit, 1x Axiom 9? on navigation desk)
*Autopilot Raymarine Evolution with p70Rs display and S100 remote control (p70Rs Autopilot display on navigation desk)
*2 Multi instruments Raymarine i70s (depth, speed, temperature) incl. transducer - wind
*2 VHF Radios Raymarine Ray90 (including handset)
*AIS Class B transponder
*Thermal vision camera at mast
*Total of 6 CCTV cameras including Interior camera
*NMEA Engine information interface for chart plotter
*All-In-antenna at mast top (VHF, FM, TV-analog and DVBT)
*2 Compasses Silva, illuminated

Electrics
*Generator Fischer Panda 15000i, 12,0 kW / 15,0 kVA
*Air condition Dometic, 60.000 BTU, 6 units: saloon and cabins, incl. 2nd shore power
*Heating system Eberspacher, hot ring with blowers in each cabin and head
*Water maker, 230 V, 200 l/h
*Bow thruster Max Power 24V, retractable
*Stern thruster Max Power 24V, retractable
*Electric anchor windlass Quick 2000W,automatic fuse, with remote control and chain counter QNC CHC in cockpit
*Electrical deck wash pump inside anchor locker
*Freshwater system with electric pump and 40 l hotwater, heated also by main engine, freshwater dockside connection in transom
*Electric bilge pump (+Manual bilge pump)
*Batteries (lithium > 1x Start 90Ah AGM + 3x Service 460Ah LiFePO4 (Mastervolt, Total 1380Ah) + 2x Thruster AGM)
*Battery charger
*CZone control system

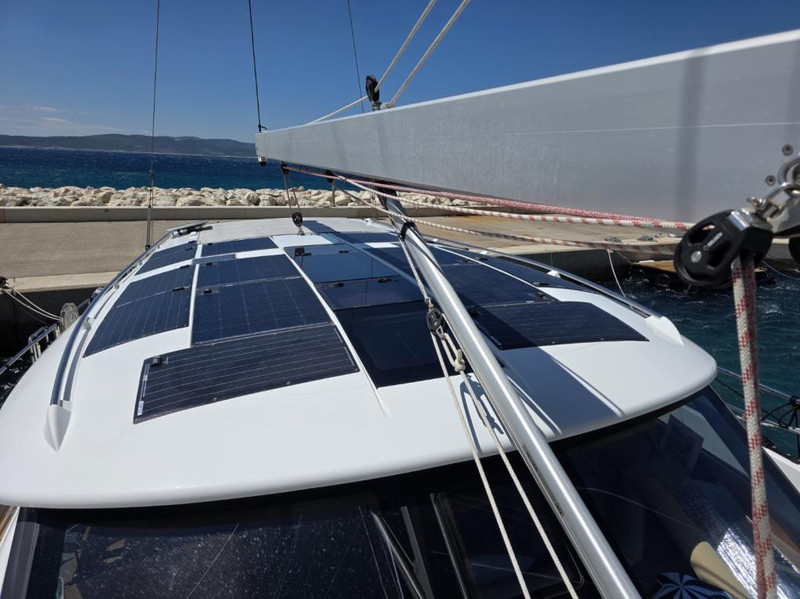

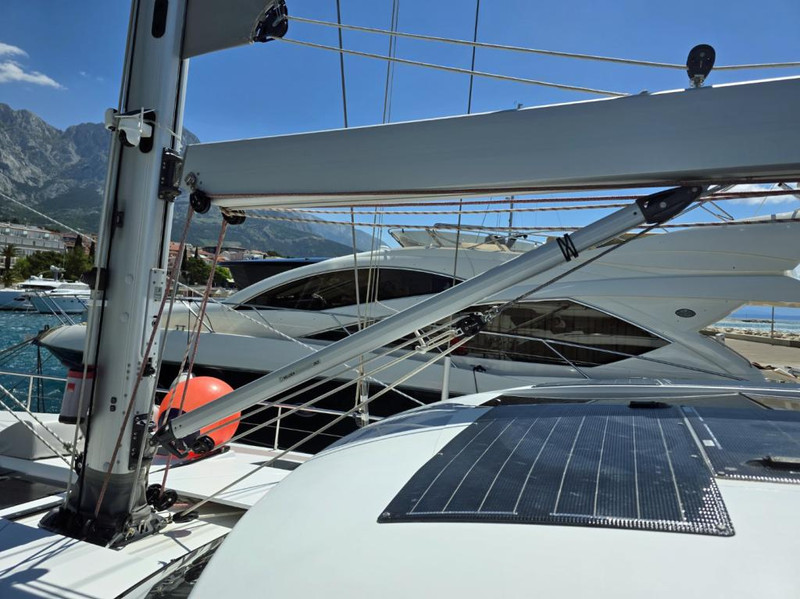

*Solar panels (mounted on superstructure)
*Isolation transformer Victron Energy 7000W
*Additional Inverter/charger, 12 V / 2500 W - 120 A incl. AC Panel
*Shore power connection with cable
*12 V and 230 V electric system with digital switchboards, bus system, 230 V shore power and sockets in cabins and heads
*2 Flat TV's, on master cabin and in saloon (TV lifting system in saloon)
*Stereo system Fusion MS-RA770 Multimedia Radio with Wi-Fi and touchscreen for saloon and cockpit, wireless link - remote control via mobile devices
*Subwoofer FUSION MS-AB206 with integrated amplifier in saloon
*Exterior and Interior loudspeakers Fusion (8 high-end 2-way speakers – 2 cockpit, 4 saloon, 2 master cabin)
*Remote control in cockpit FUSION MS-ERX400
*Starlink (2 units)
*LED Navigation lights
*Spreader lights, LED, 4 up and 4 down
*4 Underwater multicolour lights below transom (red,green,blue,white)

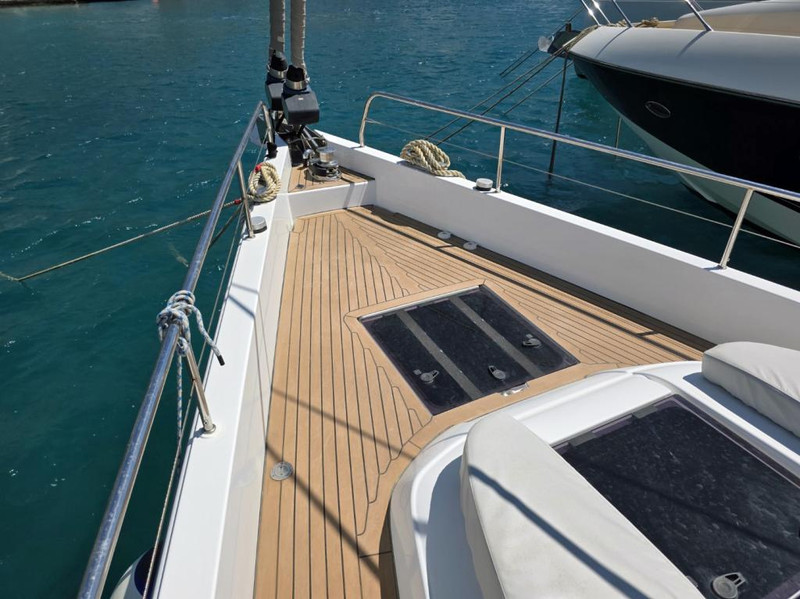

Deck

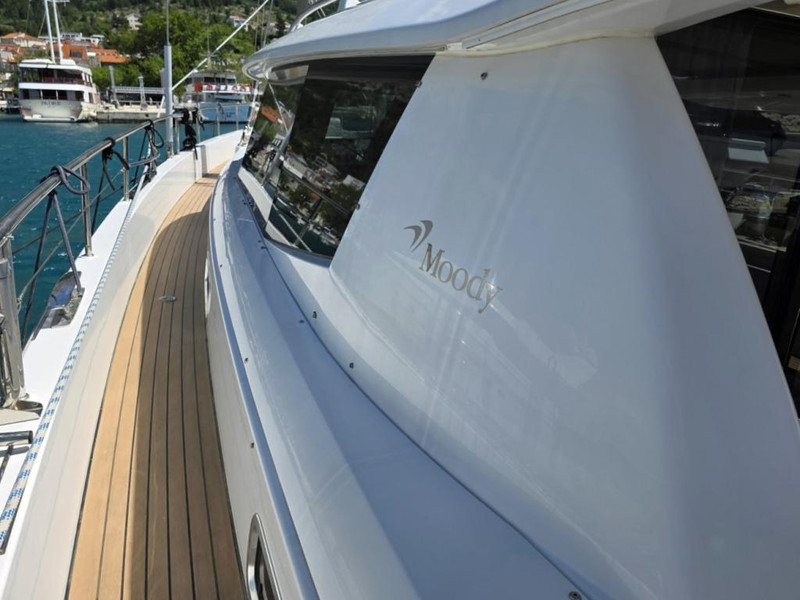

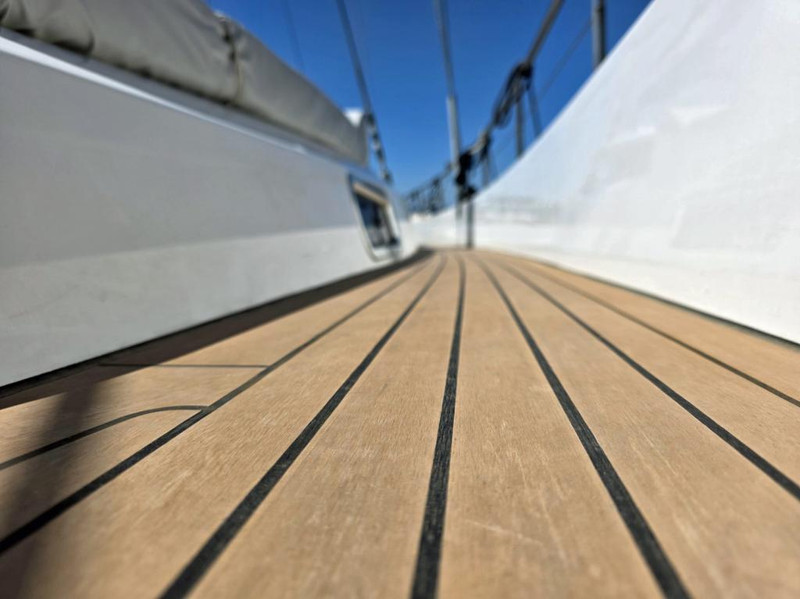

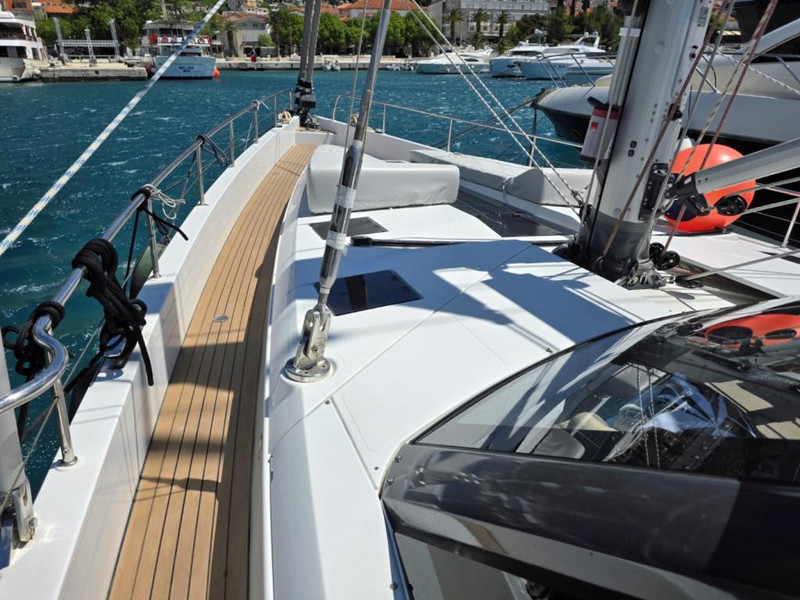

*Flexiteek (colour: Scrubbed Black) on side decks, teak cockpit floor, cockpit seats and helm seats
*Large cockpit locker on starboard side with entrance ladder + Stowage for running rigging at helm position + Freezer Vitrifrigo

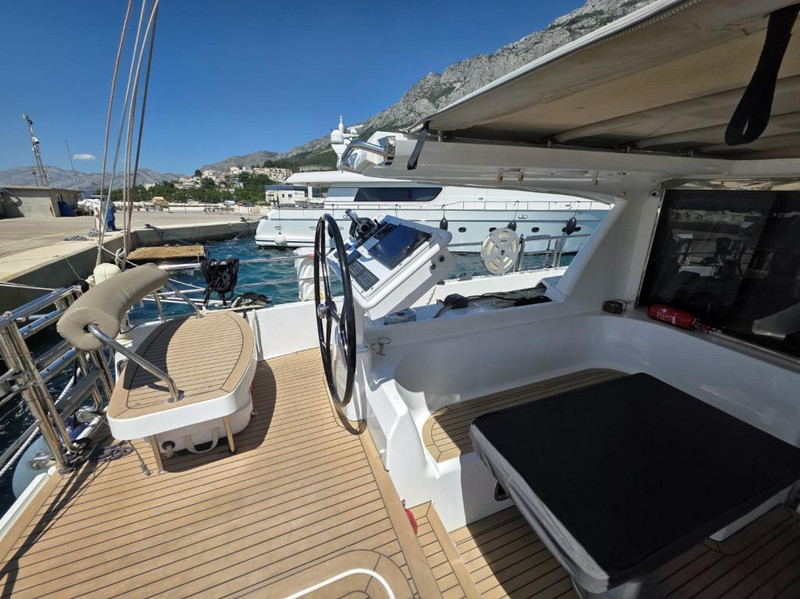

*2 Cockpit settee, one L-shaped, one straight shaped

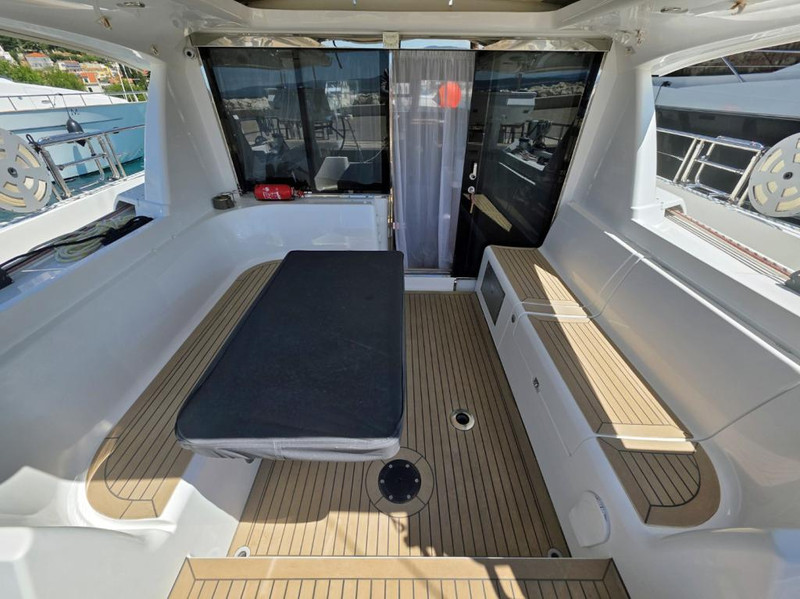

*Cockpit table, electrically retractable, convertible into sunbed incl. upholstery: Diamante, colour: Carbon
*2 Helm seats

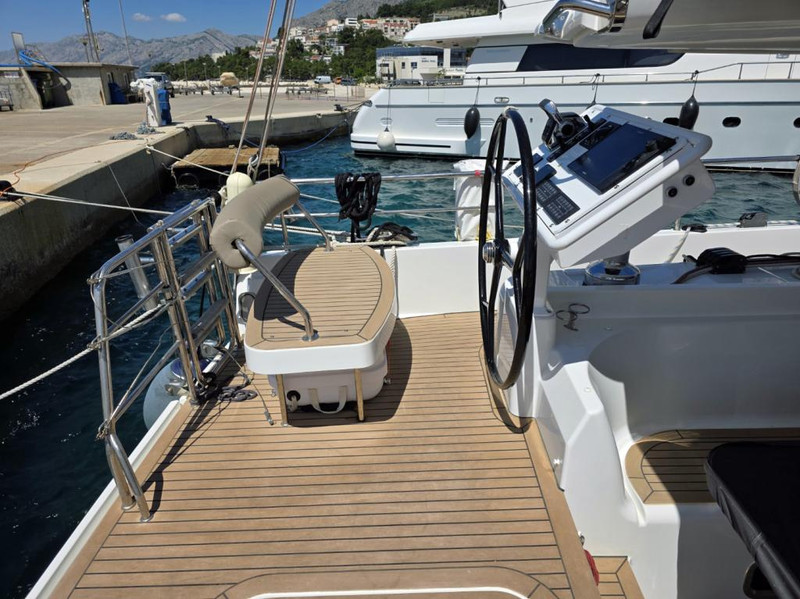

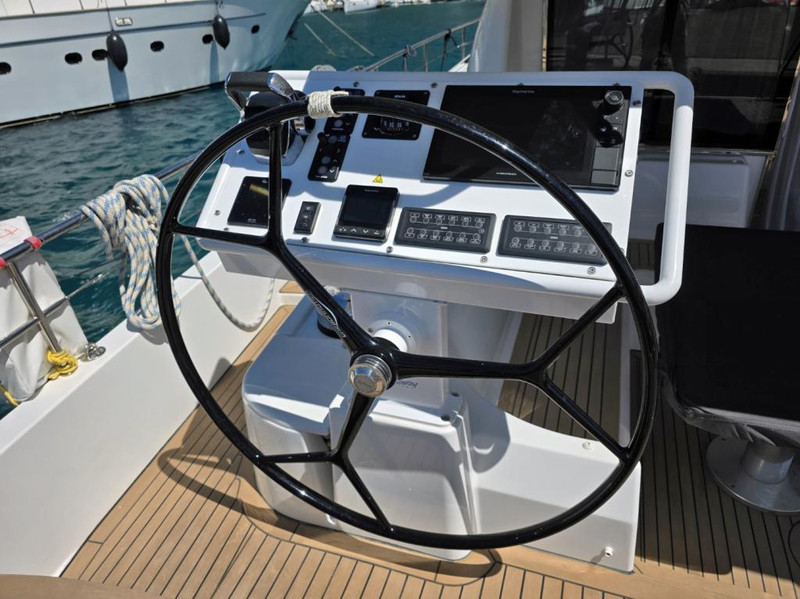

*2 Steering wheels Carbonautica Y-spoke -Jefa Steering (composite, black color) mounted on consoles
*Railing, stainless steel tube and wire, incl. integrated boarding ladder on both sides and aft swimming ladder
*Pulpit and pushpit, stainless steel
*Teak rub rail
*Refrigerator Isotherm in cockpit

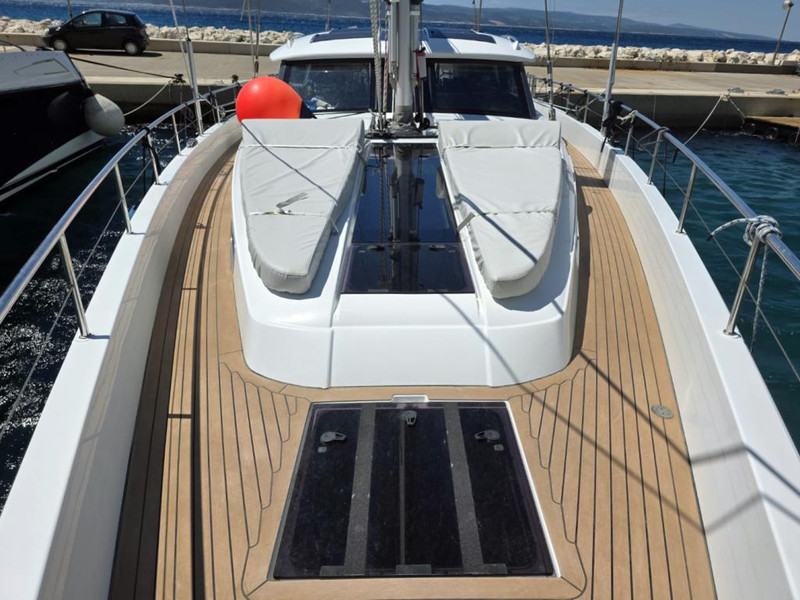

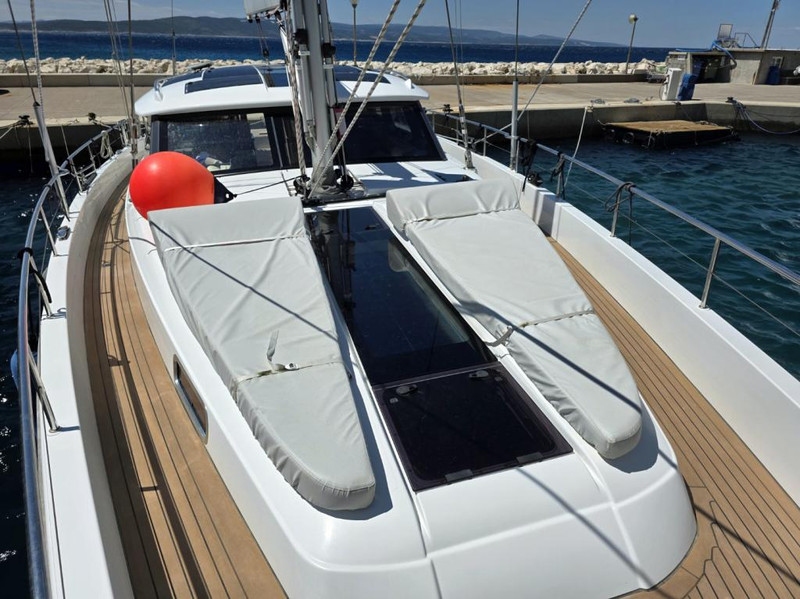

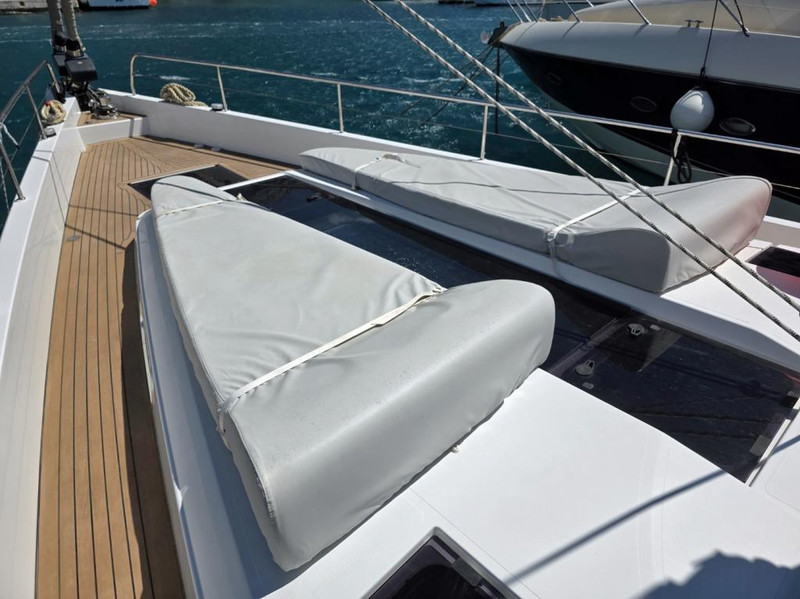

*Foredeck sun bed cushions (3)
*Cockpit cushions with backrest
*Cockpit shower (warm and cold water)
*Anchor locker at bow
*Bow anchor fitting with double roller
*Anchor Delta 40 kg stainless steel with Ultra Flip swivel and 100 m stainless steel chain
*2nd anchor
*2 Winches Lewmar 65 CAST electrical with automatic fuse
*Deck hardware Selden
*Traveller Selden
*Covered halyards and control lines lead to cockpit helmposition
*Additional spectra halyard
*Organizers and jammers
*8 Retractable mooring cleats
*Handrail on coachroof
*Mainsheet system
*Windscreen with openable hatch
*Panoramic deck saloon windows and glass roof with 2 big hatches
*Openable and 2 small hatches,
*Portlight in foredeck with 2 big hatches, openable and 4 small hatches, openable
*6 coach roof portlights, openable and 1 window in cockpit, openable

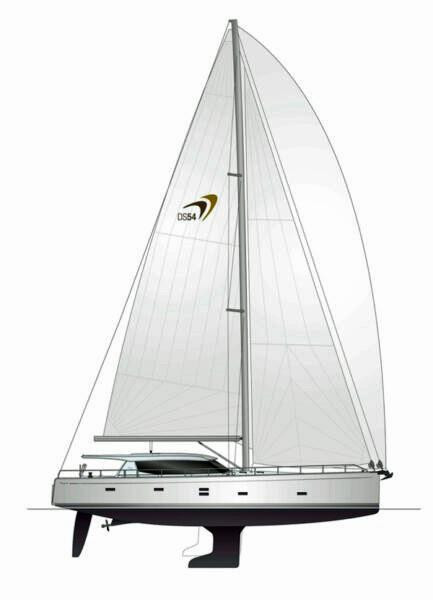

Rigging
*Rig, anodized aluminium with electrical inmast furling system, kicker, standing and running rigging

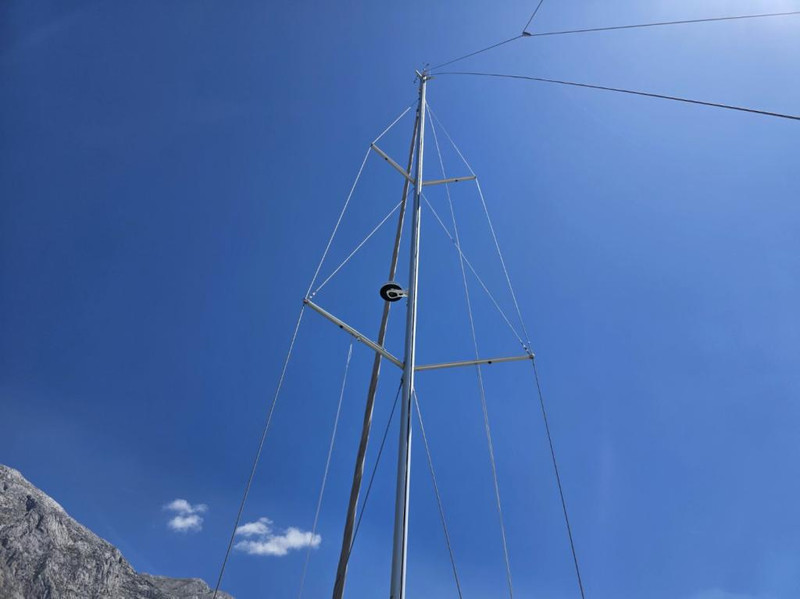

*Aluminium mast Selden with 2 spreaders
*Aluminium boom Selden
*2 Electric jib furler Selden Furlex 400 E MkII (one for jib, one for genoa including genoa tracks)
*Gennaker package incl. halyard, 2 sheets, 2 blocks and padeyes

Sails
*Roll mainsail, Quantum AC5
*Self tacking jib, Quantum AC5
*Roll genoa, Quantum AC5
*Gennaker Quantum incl. Squeezer (colour: Grey)

Additional equipment
*Dinghy garage
*Dinghy + Air compressor for tender
*Electric outboard engine 3 HP (with 2 batteries)
*Hard top Bimini sides and sliding middle canvas top (colour: Light grey)
*External sunshade for saloon w indows

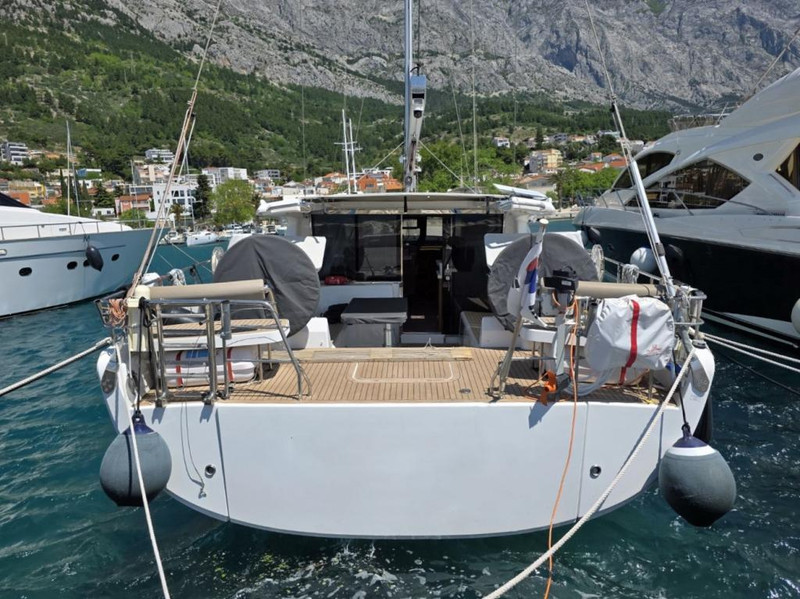

*Bathing platform, hydraulic fold-out, with remote control
*Gangway
*Lots of fenders
*Mooring lines
*Epirb
*Gas leak detector
*2 Life rafts
*2 Electric bicycles (Gocycle G4, foldable)
*Air Compressor for SCUBA Diving Cylinder
